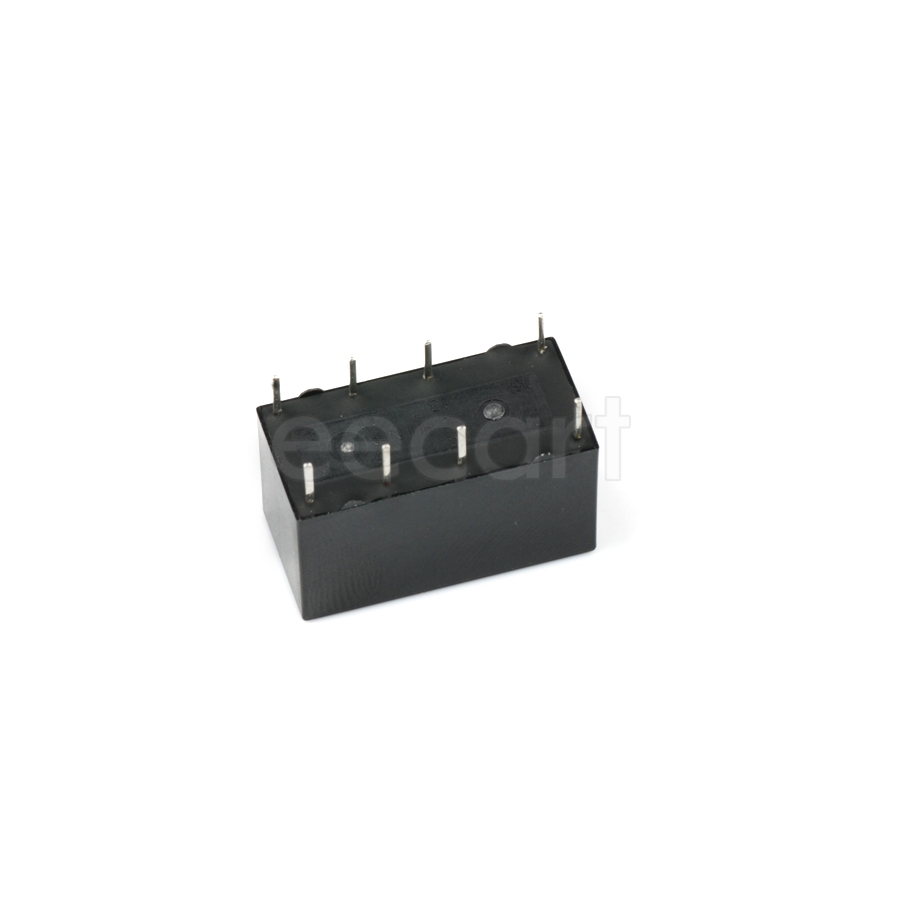

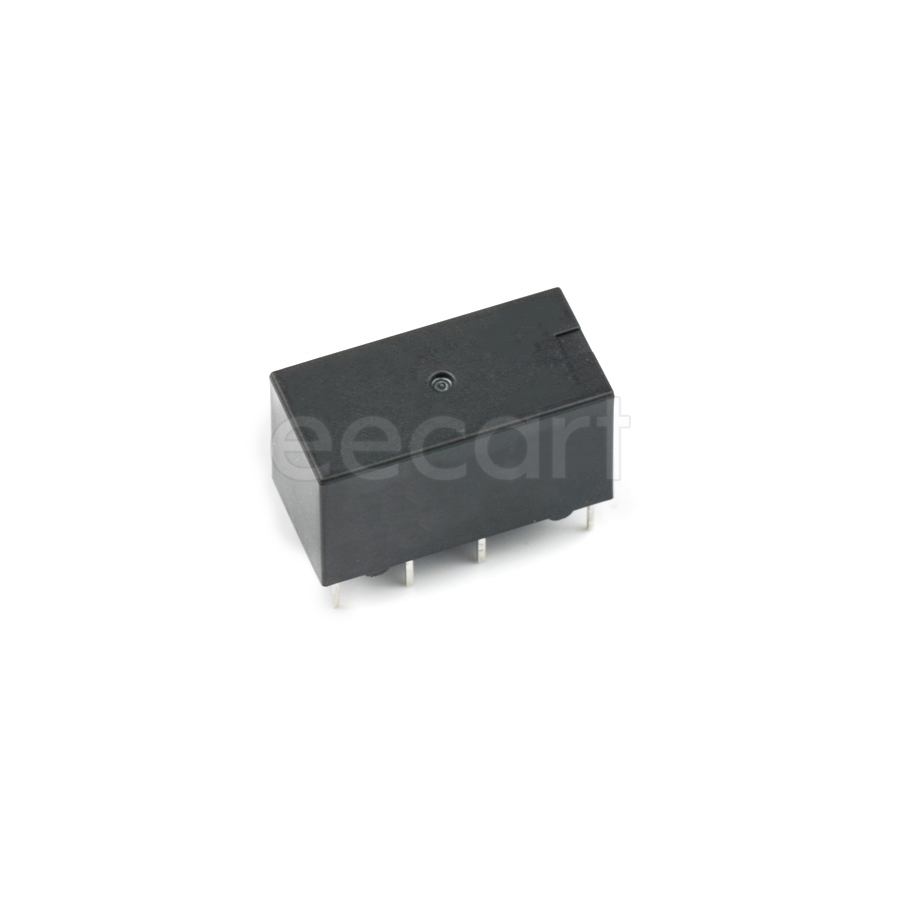

G5V-2-H1 DC12
Manufacturer:
Omron
Mfr.Part #:
G5V-2-H1 DC12
Datasheet:
Description:
Signal Relays Through Hole 12.5 mA Non-Latching Coil Voltage (DC):12 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 20.5 mm |
| Width | 10.1 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 125 V |
| Number of Pins | 8 |
| Power Rating | 150 mW |
| Height | 11.5 mm |
| Packaging | Tube |
| Depth | 10.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 5 g |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 1 A |
| Max Current Rating | 1 A |
| Max Voltage Rating (DC) | 125 V |
| Approvals | CSA, UL |
| Number of Contacts | 2 |
| Ambient Temperature Range High | 70 °C |
| Throw Configuration | DPDT |
| Max Voltage Rating (AC) | 125 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 12.5 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 960 Ω |
| Relay Type | General Purpose |
| Operate Time | 7 ms |
| Release Time | 3 ms |
| Contact Current Rating | 1 A |
| switching current | 1 A |
| power consumption | 150 mW |
| Termination Style | PC Pin |
| Switching Voltage | 125 V, 125 V |
| Coil Power | 150 mW |
| Must Operate Voltage | 9 V |
| Must Release Voltage | 600 mV |
| Contact Form | DPDT (2 Form C) |
